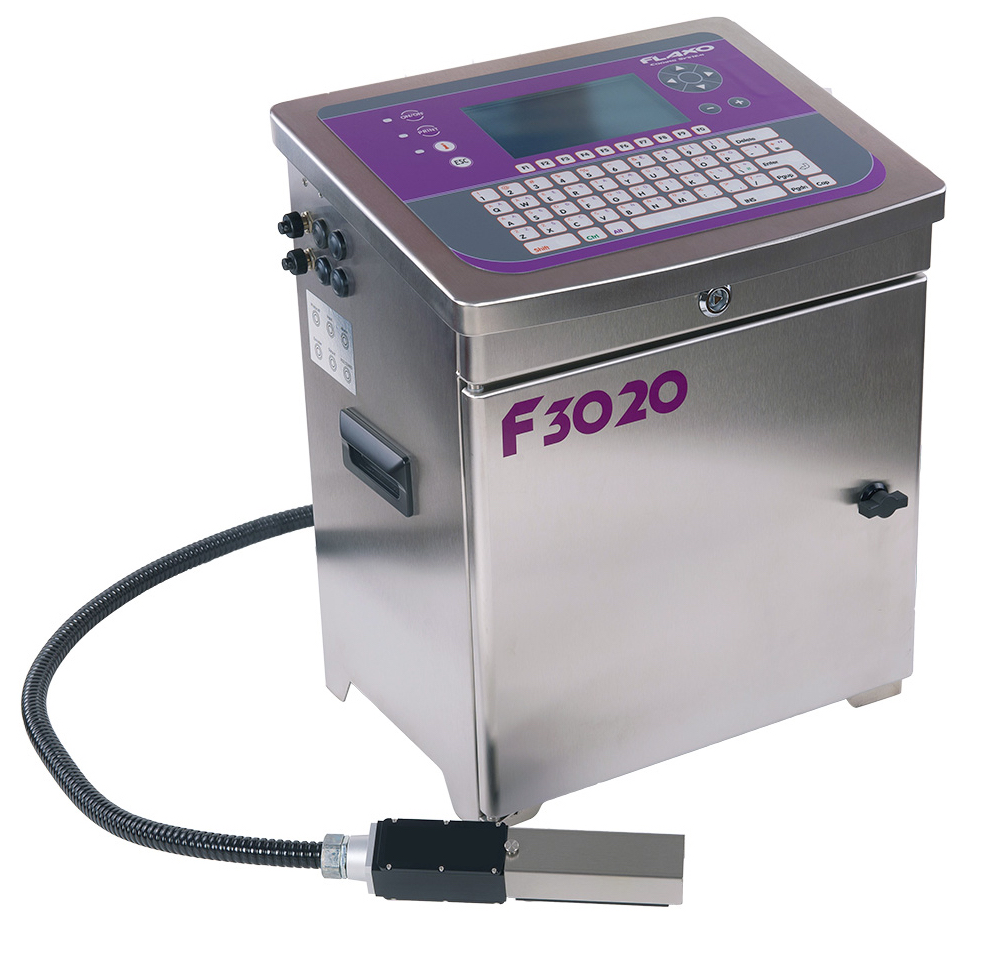

IMPRIMANTE À JET D'ENCRE F3020

French
Immagine:

L'IMPRIMANTE À JET D'ENCRE F3020 répond aux besoins de codage et de marquage de tous les environnements industriels (alimentaire, cosmétique, pharmaceutique, câbles, tuyaux et plastiques, métallurgique, électronique, textile, construction).

Avec IMPRIMANTE À JET D'ENCRE F3020, il est possible d'imprimer des codes à barres (EAN13, 125 A-B-C), des codes QR, une matrice de données, des codes automatiques, des textes alphanumériques et des graphiques.




RS232 (optional)

BCD function (optional)

Signals: Photocell, Encoder Alarm Output Printing line 2.5 m (optional 3.5 m)

OPERATOR INTERFACE Full QWERTY keyboard Download / Upload of graphics Editing of WYSIWING messages Automatic diagnostics Message memory (more than 1000 messages) Maintenance notice Start and stop function with ON / OFF buttons Continuous printing capacity Security Password Backup and restore functions Time and current and expiry date Print multilingual characters Print counter Print graphics

OPERATING ENVIRONMENT Temperature: 5 ° C -45 ° C% Relative humidity: 10-90% (non condensed) ELECTRICAL REQUIREMENTS Auto ranging: 100-240 VAC (6.3Amp) Frequency: 50-60Hz Consumption: 120 W (MAX) PRINT HEAD Technology: Continuous ink jet (CIJ) Print height: 1.2mm - 15mm Print: text, graphics, bar codes (EAN13, 128 ABC), QR codes, data matrix, automatic codes Printing lines: from 1 to 5 lines Line speed: 345 m / min Head orientation: omnidirectional Self-cleaning of the 60 µ Nozzle head (optional 40µ)

CONSUMABLE MATERIALS AND PRODUCTIVITY Ink types: colored, pigmented, Mek based, Mek free, Food Grade, UV Ink colors: black, blue, yellow, white, red, green, UV Ink drying time: immediate Ink bottles: 500 ml Makeup bottles: 500 ml Tank capacity: 2 l Printing surfaces: paper and cardboard, wood, glass, aluminum, steel, PVC, fabric

PHYSICAL CHARACTERISTICS Case: stainless steel Environment: IP54 Weight: 30 kg Cabinet dimensions: width 420mm - height 500mm - depth 300mm Measurements of print head: width 42mm - height 265mm - depth 46mm

The IMPRIMANTE À JET D'ENCRE F3020 is CE marked and is equipped with safety devices, protections and accident prevention systems according to current regulations.





Technical features:


CASE Stainless steel
AMBIENT IP54
WEIGHT 30 Kg
DIMENSIONS 420 X 500 X 300 mm
PANNEL LCD with LED screen light
CABINET In satin stainless steel (IP54 protection).
DISPLAY Backlit with WYSIWYG display
FONTS Customization of fonts
DATE Automatic update of date and time during printing
IMP/EXP USB, import/export graphics, msg., fonts

PRINT

From 1 to 5 lines

PRINT SPEED

Print till 345 mt/min.

CLEAN Programmable self-cleaning, temperature self-regulation.

NOZZLE

60 standard (40 micro optional).
INK TYPE Colored, pigmented, base MEK, Mek Free, Food Grade, UV

INK COLOR

Black, blue, yellow, white, red, UV green

WORKABLE MATERIALS

Electric wires, cables, sheath tubes, paper and cardboard, wood, glass, aluminum, steel, PVC, fabric.



IN ADDITION TO THE SALE OF THE EQUIPMENT GM AUTOMAZIONI IS ABLE TO PROVIDE MANY SERVICES, INCLUDING:

  • WIDE RANGE OF PRODUCTS FROM OUR PRODUCTION AND THE BEST BRANDS ON THE MARKET
  • CUSTOMIZATION OF EQUIPMENT AND PLANTS TAILORED TO THE CUSTOMER'S NEEDS
  • DESIGN AND REALIZATION OF SPECIAL SYSTEMS
  • TECHNICAL ASSISTANCE AT OUR HEADQUARTERS OR AT THE CLIENT'S HEADQUARTERS
  • SPARE PARTS FOR ALL MACHINES OFFERED
  • COURSES AND DEMONSTRATIONS TO USE THE EQUIPMENT BETTER
  • INSTALLATION AND TRAINING OF THE STAFF EMPLOYED BY THE MACHINES
  • VERIFICATION OF FEASIBILITY ACCORDING TO CUSTOMER REQUESTS
  • FREE SAMPLES BY TESTING DIRECTLY ON YOUR SAMPLES
  • DEMONSTRATION OF THE EQUIPMENT AT OUR HEADQUARTERS OR AT THE CLIENT'S HEADQUARTERS
  • COURSES AND SEMINARS FOR IN-DEPTH INFORMATION ON THE USE OF EQUIPMENT
  • SCHEDULED MAINTENANCE TO AVOID EXPENSIVE MACHINE STOP
  • POSSIBILITY OF EXCHANGE: THE OLD SYSTEM CHANGES WITH A NEW AND MORE COMPETITIVE
  • WE ARE SUPPLIERS OF STEEL, HARD METAL AND TITANIUM STRIPPING BLADES, MINI-APPLICATION CRIMPERS, ELECTRIC TERMINALS, PRE-INSULATED CONNECTORS, SPLICE STRIP
  • WITHDRAWAL AND OVERVALUATION OF USED
  • SALE OF COMPONENTS AND ACCESSORIES OF THE MAJOR BRANDS OPERATING ON THE MARKET
  • POSSIBILITY TO IMPLEMENT OR MODIFY YOUR OLD PRODUCTION PLANT FOR YOUR NEW MARKET NEEDS
